Name: AirGen GC
Brand: CLAIND
Availability: InStock

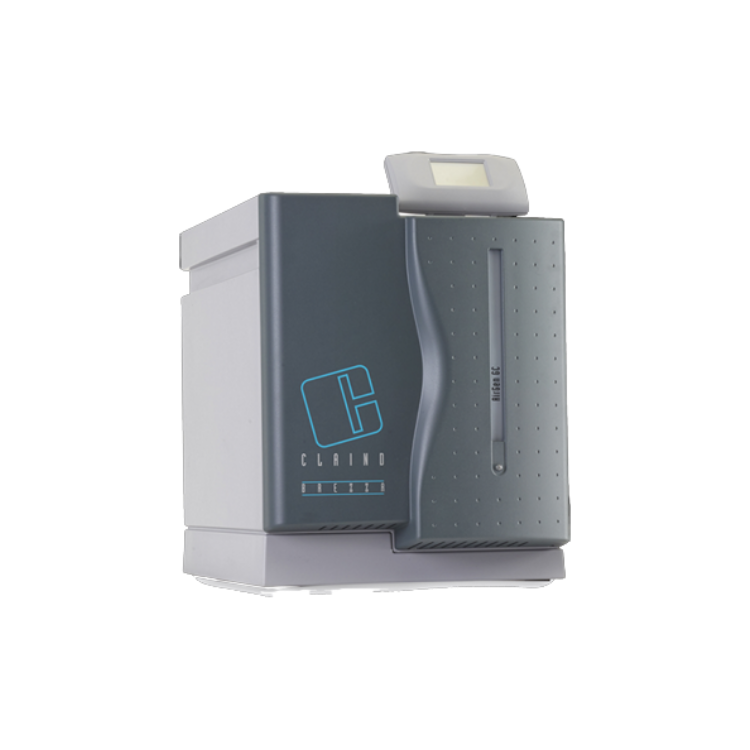

AirGen GC

0원

UHP Air Generator

Q&A

문의하기 문의하기

문의하기

Q&A

Flow Rate	3000 NmL/min ± 10% a 2000 m slm
Technologies Employed	PSA CLAIND + catalytic reactor Pl/Pd
Output Pressure	0 - 6 bar/0 - 87 psi ± 3%
Purity	HCT < 0,1 ppm
Moisture	< -50 °C dew-point ATP ± 2°C ATP
Air Input Characteristics	Particulate ≤ 0,01 mm Oil Vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP Min pressure: 8 bar/115 psi Air flow rate: 8 Nl/min
Electrical Supply	115 Vac ±10% 60 Hz 250W 230 Vac ±10% 50 Hz 250 W
Index Of Protection	IP20
Noise	< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating Temperature	5℃ fino 35℃ (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Max Altitude	2000 m slm
Dimensions	Height : 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
Weight	28 kg/62 lbs
Pneumatic Connections	Compressed air inlet: G 1/8” female Purified air output: G 1/8” female
