HyGen

Name: HyGen
Brand: CLAIND
Availability: InStock

0원

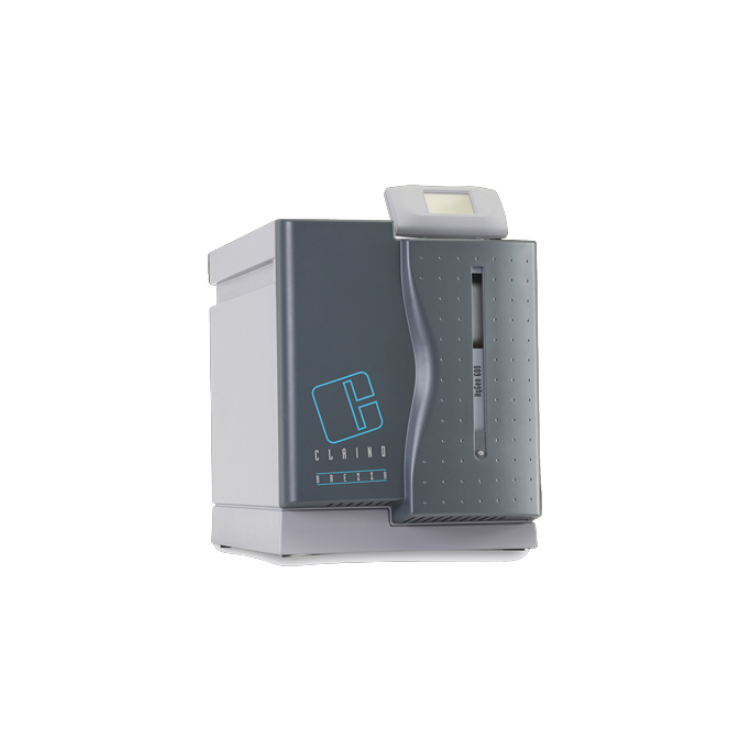

Hydrogen Generator

상품

제조사 CLAIND

브랜드 CLAIND

Q&A

문의하기 문의하기

문의하기

Q&A

Flow Rate	200/400/600 Nml/min ± 10% a 2000 m slm (possibility to connect in parallel up to 4 stacked generators)
Technologies Employ	HT PEM electrolytic cell
Output Pressure	2 - 8 bar ± 3% /30 - 116 psi ± 3%
Purity	99,9999 % Oxygen < 1 ppm
Moisture	Better than -70℃ dew-point ATP at 20℃
Requirements of Demineralized Water	Required resistivity >1 MΩ cm @25°C; ASTM Type II Advised resistivity >10 MΩ cm @25°C; ASTM Type I
Electrical Supply	115/230 VAC (+/- 10%) 50-60 Hz HyGen 200: 110W HyGen 400: 180W HyGen 600: 250W
Index Of Protection	IP20
Noise	< 50 dBA
Operating Temperature	5℃ - 35℃ / 40°F - 95°F
Environmental Humidity	max 90% without condensation
Max Altitude	2000 m slm
Dimensions	Height: 40 cm + 7 cm (base) /15.8” + 2.8” Width: 38 cm/14.9” Width: 38 cm/14.9”
Weight	30 kg/67 lbs
Pneumatic Connections	Hydrogen output : G 1/8” female AISI 316 Exhaust: quick coupling for plastic pipe 4 mm Input demineralized water: flexible hose with 1⁄4” connection
Warranty	2 years

Flow Rate	200/400/600 Nml/min ± 10% a 2000 m slm (possibility to connect in parallel up to 4 stacked generators)
Technologies Employ	HT PEM electrolytic cell
Output Pressure	2 - 8 bar ± 3% /30 - 116 psi ± 3%
Purity	99,9999 % Oxygen < 1 ppm
Moisture	Better than -70℃ dew-point ATP at 20℃
Requirements of Demineralized Water	Required resistivity >1 MΩ cm @25°C; ASTM Type II Advised resistivity >10 MΩ cm @25°C; ASTM Type I
Electrical Supply	115/230 VAC (+/- 10%) 50-60 Hz HyGen 200: 110W HyGen 400: 180W HyGen 600: 250W
Index Of Protection	IP20
Noise	< 50 dBA
Operating Temperature	5℃ - 35℃ / 40°F - 95°F
Environmental Humidity	max 90% without condensation
Max Altitude	2000 m slm
Dimensions	Height: 40 cm + 7 cm (base) /15.8” + 2.8” Width: 38 cm/14.9” Width: 38 cm/14.9”
Weight	30 kg/67 lbs
Pneumatic Connections	Hydrogen output : G 1/8” female AISI 316 Exhaust: quick coupling for plastic pipe 4 mm Input demineralized water: flexible hose with 1⁄4” connection
Warranty	2 years
