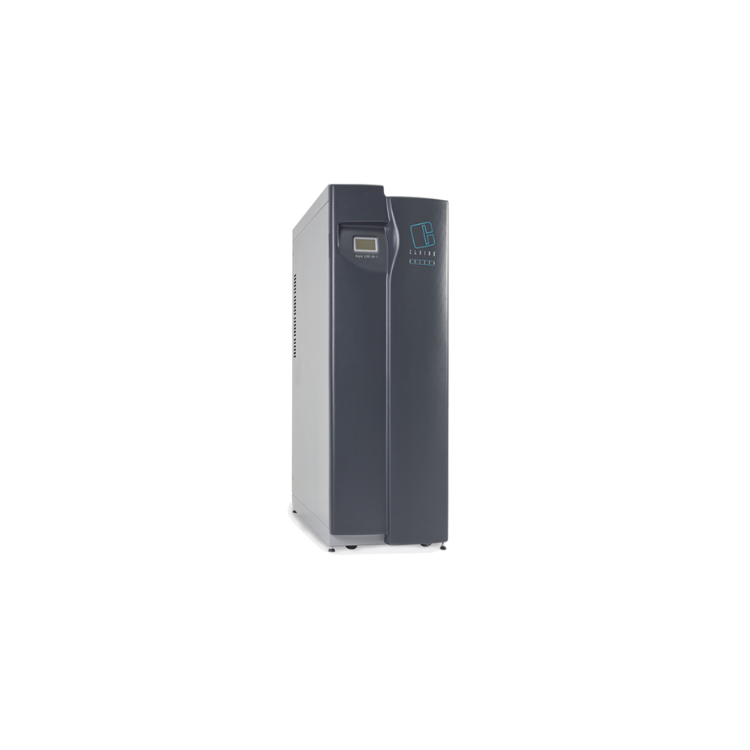

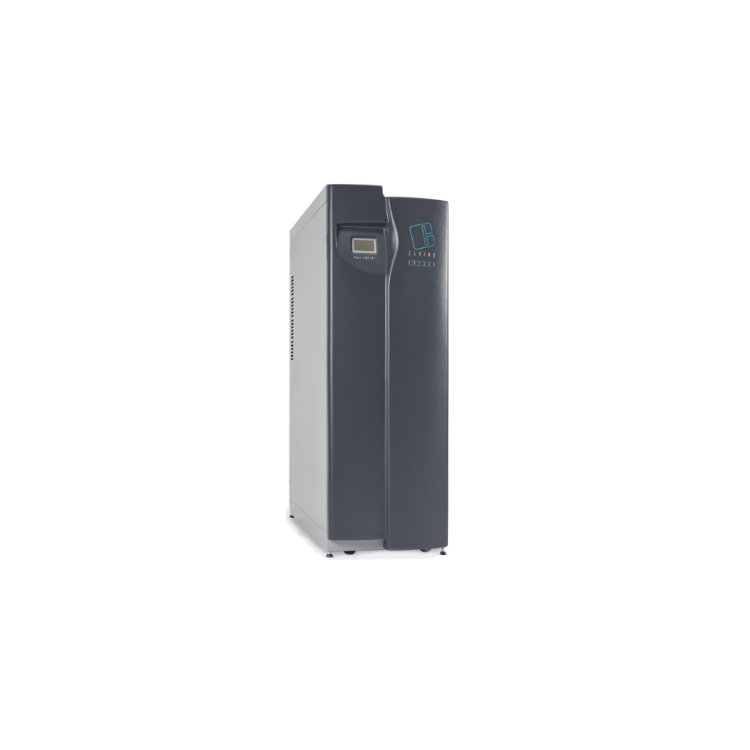

Name: NiGen LCMS
Brand: CLAIND
Availability: InStock

NiGen LCMS

0원

Nitrogen Generator

Q&A

문의하기 문의하기

문의하기

Q&A

Technical Specifications
Flow Rate	NiGen LCMS 40-1 : 38 Nl/min ± 10% a 2000 m asl
Technologies Employ	PSA CLAIND
Output Pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	up to 99.9%
Compressor	Only in the version 40-1
Air Input Characteristics	Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 40-1	115 Vac ± 10% 60 Hz 1,9 kW 230 Vac ± 10% 50 Hz 1,6 kW
Index Of Protection	IP20
Noise	< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature	5°C fino 35°C (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	220 kg/489 lbs
Pneumatic Connections	Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

Technical Specifications
Flow Rate	NiGen LCMS 100 : 100 Nl/min ± 10% a 2000 m asl
Technologies Employ	PSA CLAIND
Output Pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	up to 99.9%
Compressor	Only in the version 40-1
Air Input Characteristics	Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 100	115/230 Vac ± 10% 60/50 Hz 50 W
Index Of Protection	IP20
Noise	< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature	5°C fino 35°C (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	200 kg/444 lbs
Pneumatic Connections	Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

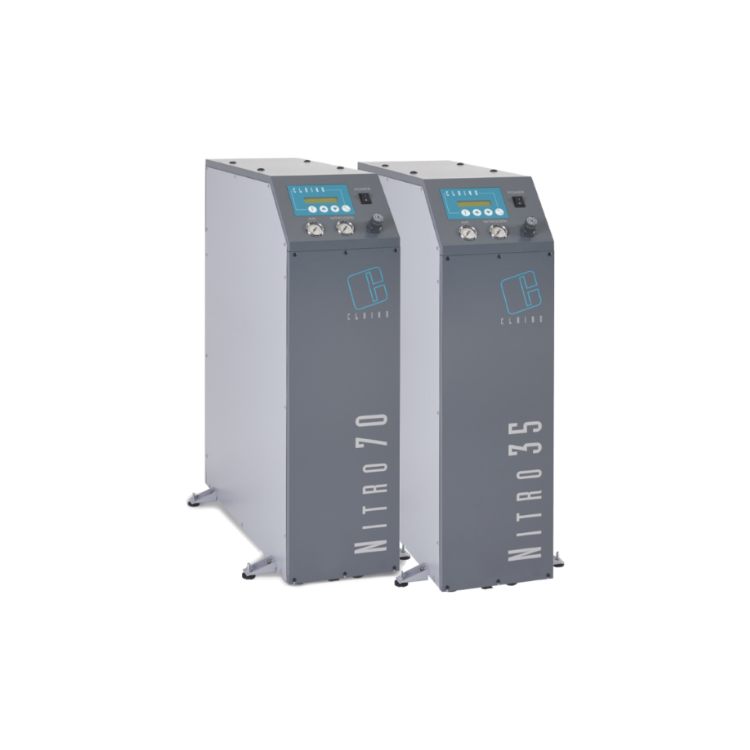

FLOW RATE	up to 35 Nl/min from the Model 35 up to 70 Nl/min from the Model 70
TECHNOLOGIES EMPLOY	PSA
OUTPUT PRESSURE	0 - 6,5 bar/0 – 94 psi
PURITY	up to 99,99%
MOISTURE	<-50°C dew point ATP
AIR INPUT CHARATERISTICS	particulate ≤ 0,01 µm - Oil vapors ≤ 0,01 mg/m3 moisture ≤ 3° C dew point in pressure min pressure : 8.5 bar/120 psi medium flow rate: Model 70 up to 170 Nl/min Model 35 up to 90 Nl/min
ELECTRICAL SUPPLY	115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
INDEX OF PROTECTION	IP20
OPERATING TEMPERATURE	+ 5°C ÷ + 40°C
ENVIRONMENTAL HUMIDITY	5 ÷ 80%
MAX ALTITUDE	2000 m asl
DIMENSIONS	Height: 92 cm/36” Width: 26,5 cm/10” Depth: 75 cm/29”
WEIGHT	90 kg/198 lbs Model 70 75 kg/154 lbs Model 35

Technical Specifications
Flow Rate	NiGen LCMS 40-1 : 38 Nl/min ± 10% a 2000 m asl
Technologies Employ	PSA CLAIND
Output Pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	up to 99.9%
Compressor	Only in the version 40-1
Air Input Characteristics	Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 40-1	115 Vac ± 10% 60 Hz 1,9 kW 230 Vac ± 10% 50 Hz 1,6 kW
Index Of Protection	IP20
Noise	< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature	5°C fino 35°C (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	220 kg/489 lbs
Pneumatic Connections	Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female

Technical Specifications
Flow Rate	NiGen LCMS 100 : 100 Nl/min ± 10% a 2000 m asl
Technologies Employ	PSA CLAIND
Output Pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	up to 99.9%
Compressor	Only in the version 40-1
Air Input Characteristics	Particulate ≤ 0,01 µm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point min pressure: 8.5 bar/120 psi max pressure: 10 bar/145 psi
Electrical Supply X Lcms 100	115/230 Vac ± 10% 60/50 Hz 50 W
Index Of Protection	IP20
Noise	< 50 dBA during the stand by of the compressor < 65 dBA with compressor running
Operating Temperature	5°C fino 35°C (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	200 kg/444 lbs
Pneumatic Connections	Compressed air inlet: G 1/4” female Nitrogen output: G 1/4” female
