GC

Name: GC
Brand: CLAIND
Availability: InStock

0원

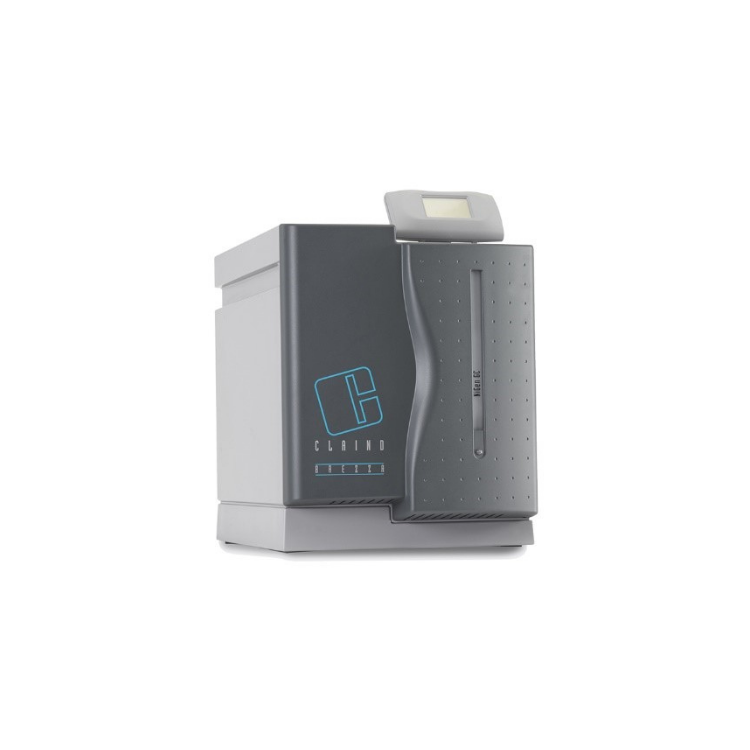

Nitrogen Generator

상품

제조사 CLAIND

브랜드 CLAIND

Q&A

문의하기 문의하기

문의하기

Q&A

Technical specifications
Flow rate	500 Nml/min ± 10% a 2000 m asl
Technology	PSA CLAIND
Output pressure	0 - 6 bar/0 - 87 psi ± 3%
Purity	> 99,9995 %
Moisture	< -50 °C dew-point ATP ± 2°C ATP
Air input characteristics	Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min
Electrical supply x nigen gc	115/230 Vac ±10% 60-50 Hz 50 w
Electrical supply x nigen gc hc	115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protection	IP20
Noise	< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating temperature	5°C - 40°C/40°F - 100°F
Environmental humidity	max 90% without condensation
Max altitude	2000 m asl
Dimensions	Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
Weight	GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
Pneumatic connections	Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female

Technical specifications
Flow rate	500 Nml/min ± 10% a 2000 m asl
Technology	PSA CLAIND
Output pressure	0 - 6 bar/0 - 87 psi ± 3%
Purity	> 99,9995 %
Moisture	< -50 °C dew-point ATP ± 2°C ATP
Air input characteristics	Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min
Electrical supply x nigen gc	115/230 Vac ±10% 60-50 Hz 50 w
Electrical supply x nigen gc hc	115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protection	IP20
Noise	< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating temperature	5°C - 40°C/40°F - 100°F
Environmental humidity	max 90% without condensation
Max altitude	2000 m asl
Dimensions	Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
Weight	GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
Pneumatic connections	Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female

Technical specifications
Flow rate	6 Nml/min ± 10% a 2000 m asl
Technologies employ	PSA CLAIND
Output pressure	0 - 7 bar/0 - 100 psi ± 3%
Purity	> 99,9995 %
Oil free compressor	Included
Electrical supply	115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protection	IP20
Noise	< 50 dBA during the stand by of the compressor
Operating temperature	5°C fino 35°C (41°F fino 95°F)
Environmental humidity	max 90% without condensation
Dimensions	Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3”
Weight	220 kg/489 lbs
Pneumatic connections	Compressed air inlet: G 1/4” female Nitrogen outlet: G 1/4” female

Technical specifications
Flow rate	500 Nml/min ± 10% a 2000 m asl
Technology	PSA CLAIND
Output pressure	0 - 6 bar/0 - 87 psi ± 3%
Purity	> 99,9995 %
Moisture	< -50 °C dew-point ATP ± 2°C ATP
Air input characteristics	Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min
Electrical supply x nigen gc	115/230 Vac ±10% 60-50 Hz 50 w
Electrical supply x nigen gc hc	115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protection	IP20
Noise	< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating temperature	5°C - 40°C/40°F - 100°F
Environmental humidity	max 90% without condensation
Max altitude	2000 m asl
Dimensions	Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
Weight	GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
Pneumatic connections	Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female

Technical specifications
Flow rate	500 Nml/min ± 10% a 2000 m asl
Technology	PSA CLAIND
Output pressure	0 - 6 bar/0 - 87 psi ± 3%
Purity	> 99,9995 %
Moisture	< -50 °C dew-point ATP ± 2°C ATP
Air input characteristics	Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min
Electrical supply x nigen gc	115/230 Vac ±10% 60-50 Hz 50 w
Electrical supply x nigen gc hc	115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
Index of protection	IP20
Noise	< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating temperature	5°C - 40°C/40°F - 100°F
Environmental humidity	max 90% without condensation
Max altitude	2000 m asl
Dimensions	Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
Weight	GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
Pneumatic connections	Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female
